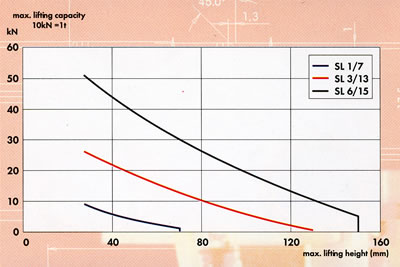

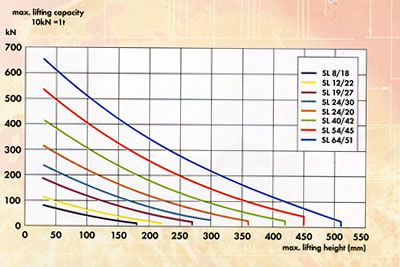

Standard Kevlar Cord Reinforced Lifting Bags

Our high pressure lifting bags are reinforced with Kevlar cord. Patented lifting bag construction assures excellent operation over a longer period of time. All metal parts that are installed in a lifting bag are made of brass.

Lifting bags are thin and simple to use. The surface with interlocking dimples provides superior gripping therefore sliding is almost impossible even when two bags are stacked on top of each other. Eleven different sizes of lifting bags ar available with the lifting capacity from 1 to 64 tonnes.

Main advantages

• Lifting bags reinforced with Kevlar cord
• Thin and simple to use
• Lifting bag metal parts are made of brass
• Range of eleven sizes from 1 to 64 tonnes

Back to top

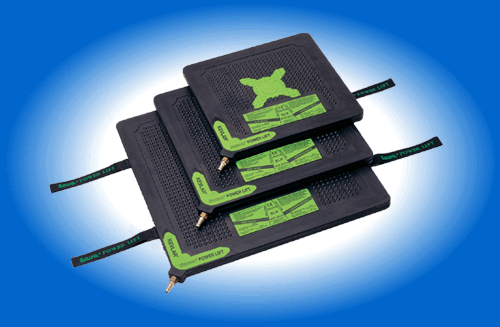

Flat Form Kevlar Cord Reinforced Lifting Bags

The main advantages of the Flat Form Lifting Bags are:

1. Flat form lifting bags eliminate the need for complicated height/weight computation graphs and uncertain lifting height calculations –simply stated a 35 tonne bag will lift 35 tonnes to specified height.
2. Flat form bags safely link together when stacked eliminating slipping. Maximum of three bags can be safely stacked.
3. Flat form lifting bags retain their flat profile eliminating rolling and shifting.
4. Heavy duty design and Kevlar reinforcing insure long life.














   Flat-Form Lifting Bag Technical Data

   	Units of Capacity	8-10	12-13	15-17	23-22	35-26
   Code		519882	519883	519884	519885	519886
   Size	cm x cm	45 x 45	55 x 55	61 x 61	78 x 78	91 x 91
   Thickness	cm	2.8	2.8	2.8	2.8	2.8
   Weight	kg	5.4	8	10.6	17.1	23.8
   Insertion Height	cm	2.9	2.9	2.9	2.9	2.9
   Max. Lifting Height	cm x cm	10	13	17	22	26
   Max. Lifting Capacity	tonnes	8	12	15	23	35
   Max. Inflation Pressure	bar	8	8	8	8	8
   Test Pressure	bar	10.5	10.5	10.5	10.5	10.5
   Bursting Pressure	bar	>15	>15	>15	>15	>15




   Back to top

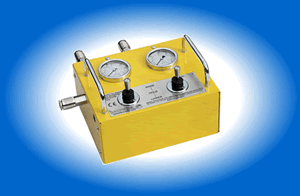

   Dead man lever operated dual control unit

   Code: B3640


   Back to top

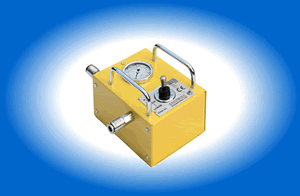

   Dead man lever operated single control unit

   Code: B3641


   Back to top

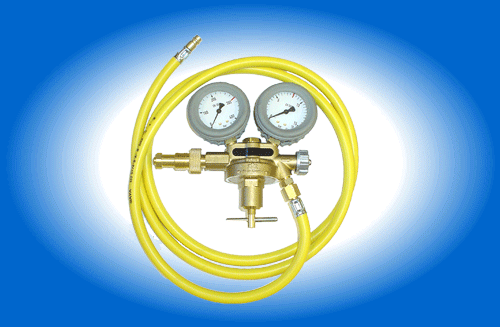

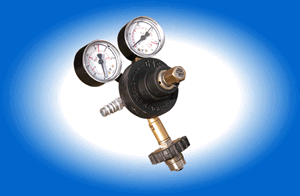

   Regulator with pressure gauges

   Code: D3557


   Back to top

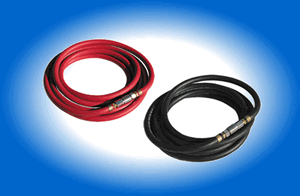

   5m hose assembly

   5m hose assembly complete safety lock couplings to customer specification Code C3523
